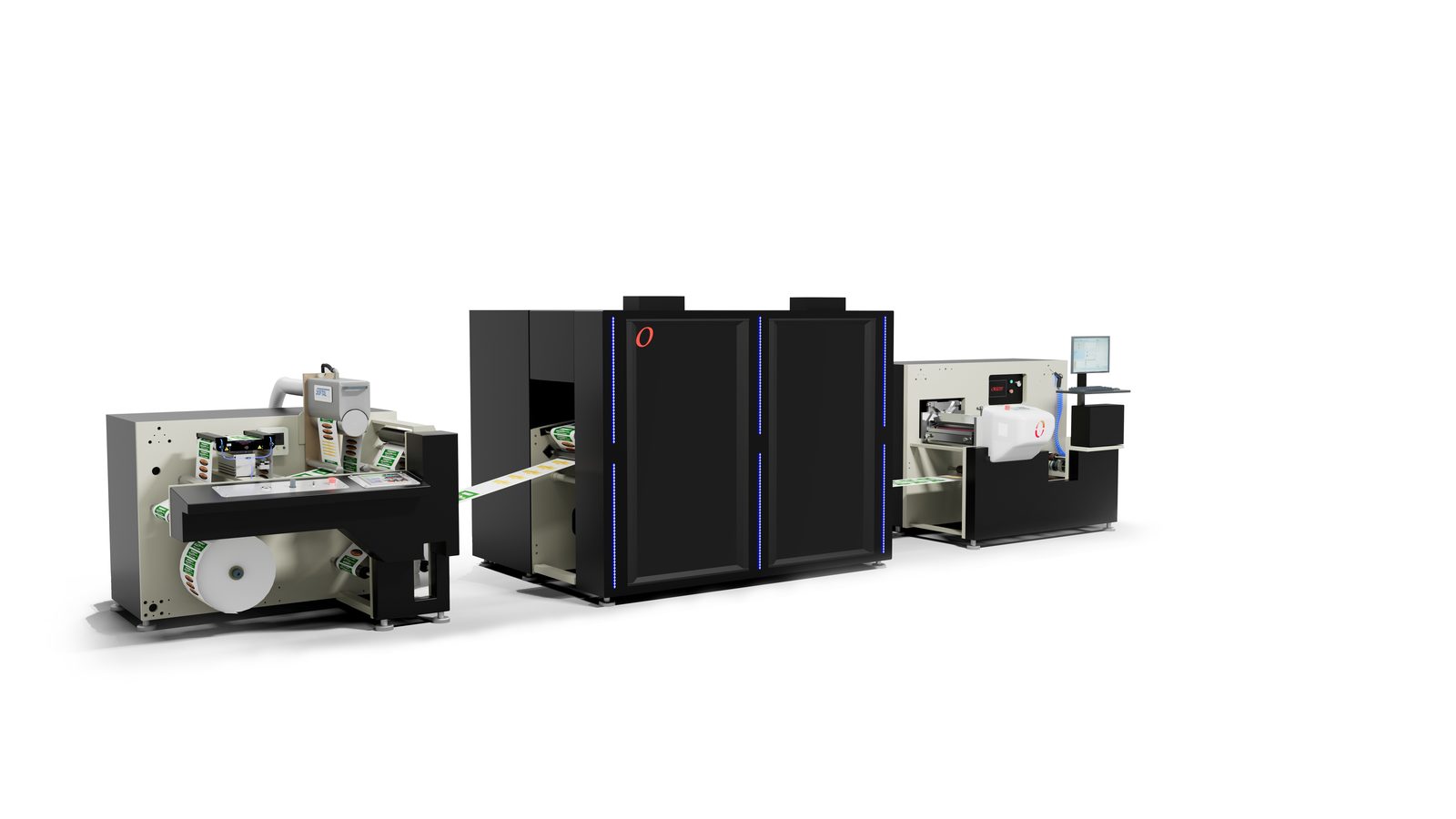

Orient Jet L&P Series
Digital Inkjet Printing — UV
UV inkjet digital press for labels and flexible packaging. Up to 8 colours (White + CMYK + optional orange, violet, green, clear, double white) with UV LED curing. Engineered to integrate with the Orient X-Press Flex for a complete hybrid digital + flexo production line.
Maximum SpeedUp to 75 m/min
Key Features
- →Custom Piezo DOD UV inkjet print heads — engineered exclusively for Orient
- →Up to 8 colour stations — White + CMYK + optional orange, violet, green, clear, double white
- →UV LED curing
- →600 × 600 dpi and 1200 × 1200 dpi variants
- →Orient Jet UV inks
- →Hybrid-ready: inline flexo priming, coating, cold foil, spot colours, die-cutting, lamination, slitting, rewinding via Orient X-Press Flex
- →Full VDP: barcodes, QR codes, serialization, security elements
- →Corona treater, web cleaner, anti-static, fully-servo tension control, chiller roll, splice table, web aligner
Specifications
Printing TechnologyUV Inkjet Digital
Colour ConfigurationUp to 8 · White + CMYK + spot colours
Resolution600 × 600 dpi or 1200 × 1200 dpi
Print SpeedUp to 75 m/min
CuringUV LED
Machine Width330 – 880 mm (standard common widths 330 mm and 450 mm)
Imaging Width324 – 864 mm (standard common imaging widths 324 mm and 432 mm)
Substrate TypesSelf-adhesive labels, paper, vinyl, BOPP, PET, PE, PP, metallized films, clear films, filmic, specialty
InkOrient Jet UV
Print HeadsCustom Piezo DOD · UV inkjet
Roll Diameter800 mm (customizable)
Core Size76 mm (3") on air shaft
Hybrid CapabilityFull hybrid with Orient X-Press Flex
Environment40 – 60% RH, dust-free
Performance of the machine may vary depending on a number of factors including substrate type, application, operator skill etc.
