Orient Super
Web Offset Printing

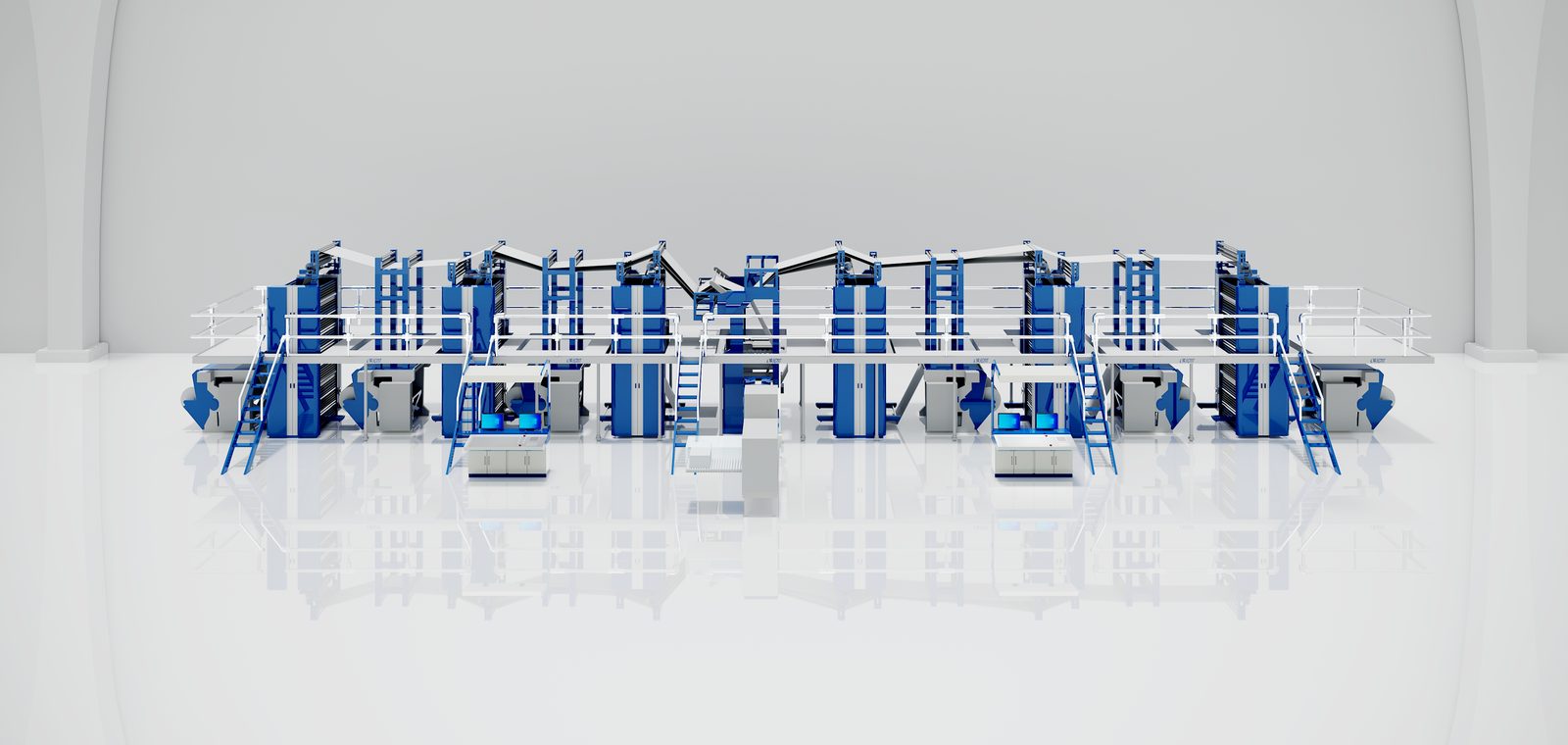

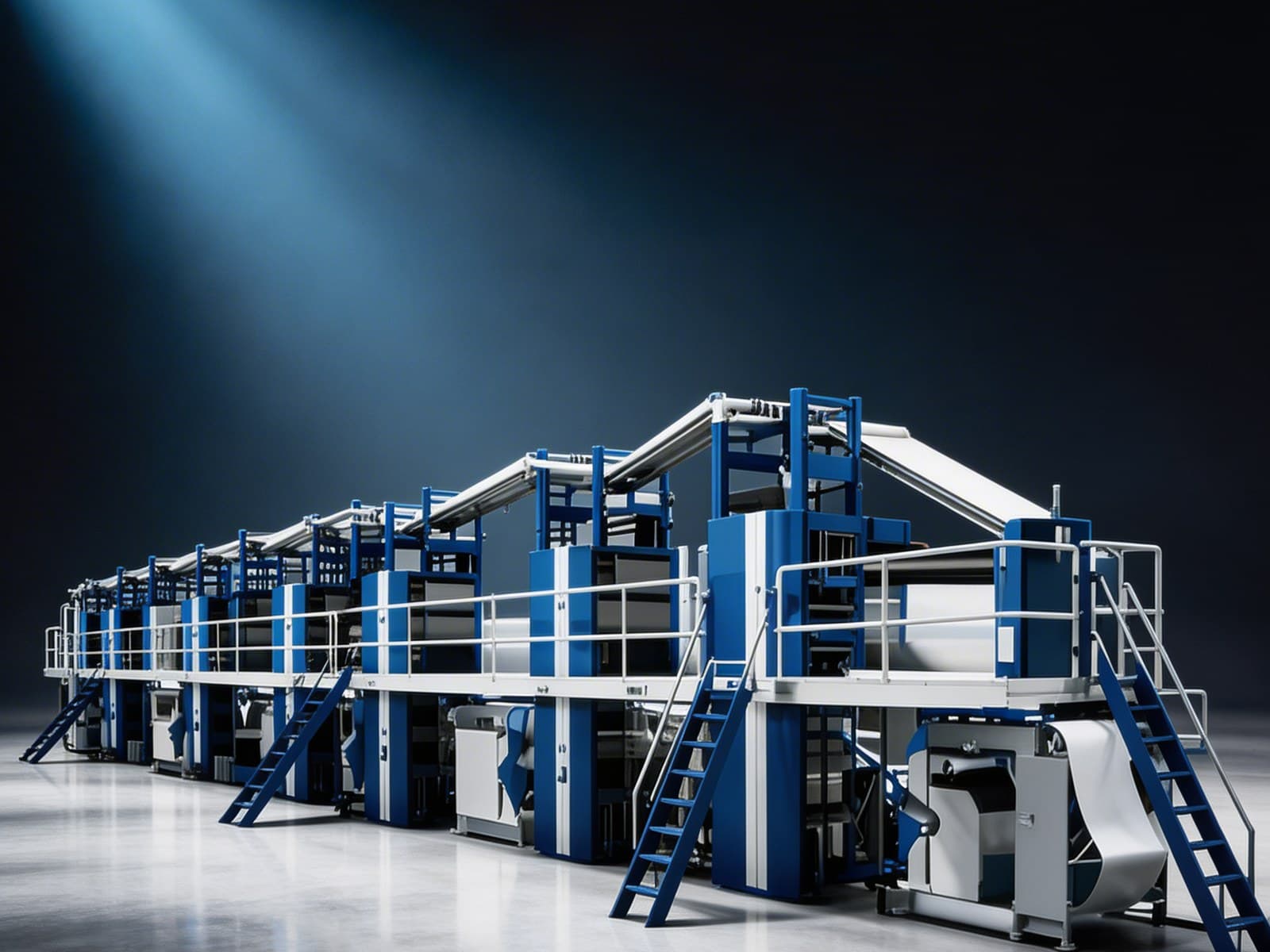

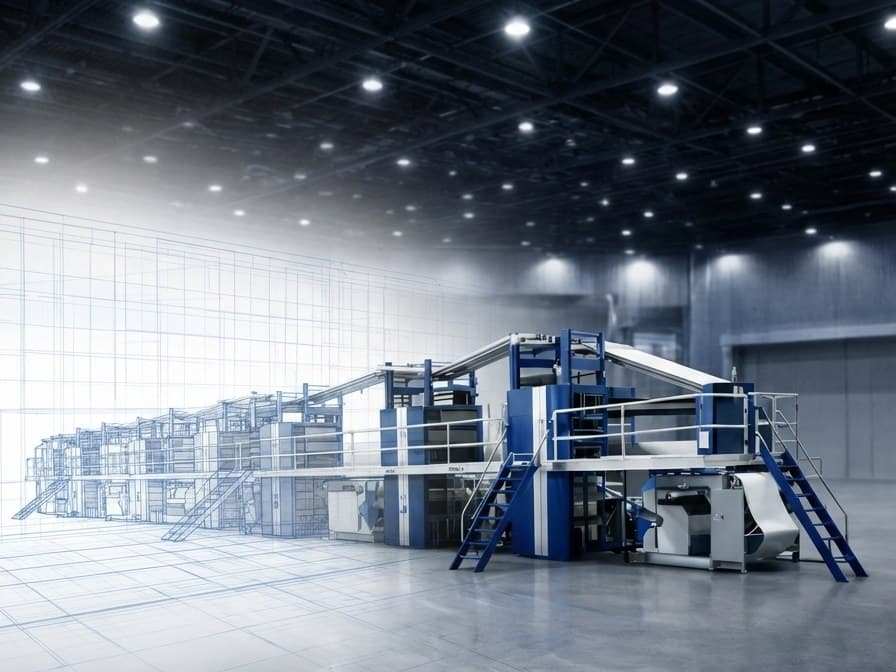

Single-width, single-circumference web-offset press running up to 30,000 copies per hour. Configurable as Mono Unit, 3-Colour Satellite, or 4 High Tower — 4 colours on both sides of one web, 2 colours on both sides of two webs, or single colour on both sides of three webs.
Maximum SpeedUp to 30,000 cph
Configurations
Mono Unit3-Colour Satellite4 High Tower
Key Features

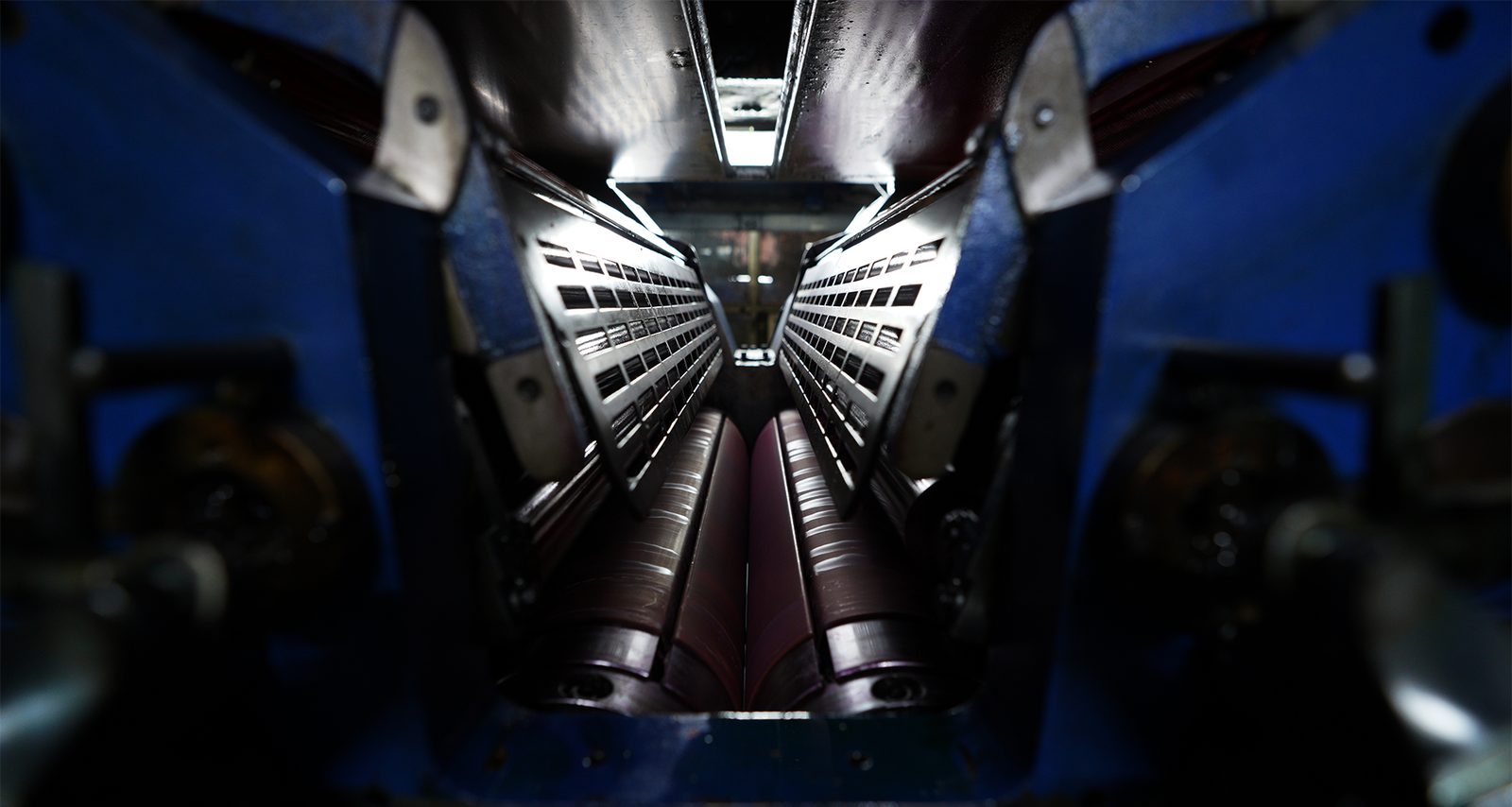

- →Dynamically-balanced hard chromium plated plate and blanket cylinders
- →Lever-type swing-down ink fountain with overrides
- →Slit or spring-type plate lock-up system
- →Motorized side register for both plate cylinders, on the run
- →Variable-speed motorized brushmist dampening
- →Electro-mechanical web-break detector
- →Optional: narrow gap blanket cylinder, solid stainless-steel cylinders, centralized water circulation with chiller, automatic grease lubrication, AC drive
Specifications
Speed30,000 cph
Paper Width660 – 889 mm
Max Reel Diameter1,070 mm (42")
Plate Width890 mm
Plate Thickness0.28 / 0.30 mm
Blanket Thickness (w/ packing)2.1 mm
Paper Grammage (Uncoated)38 – 100 gsm
Available Cut-offs508 · 533 · 546 · 560 · 578 · 630 mm
Performance of the machine may vary depending on a number of factors including substrate type, application, operator skill etc.
