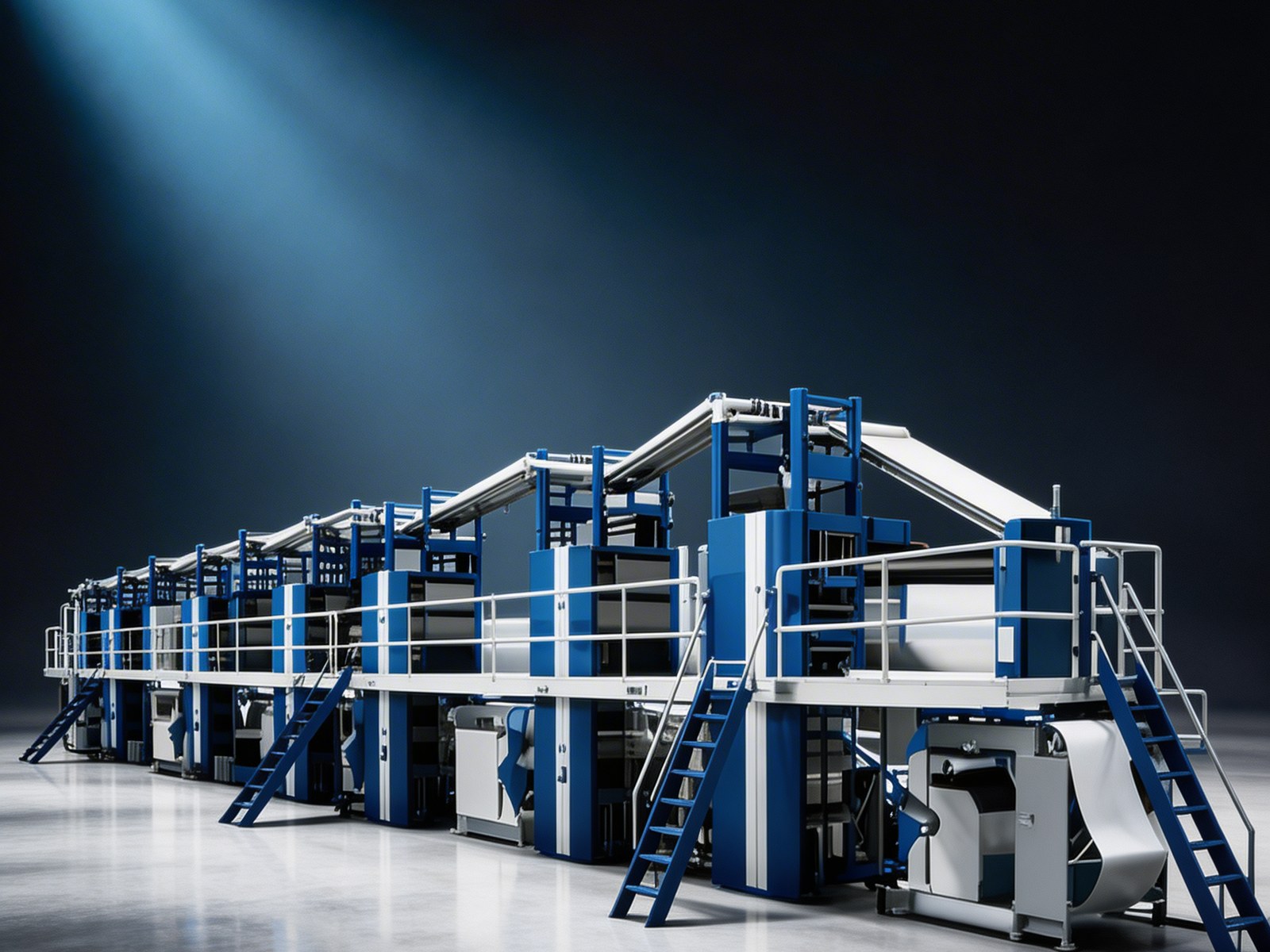

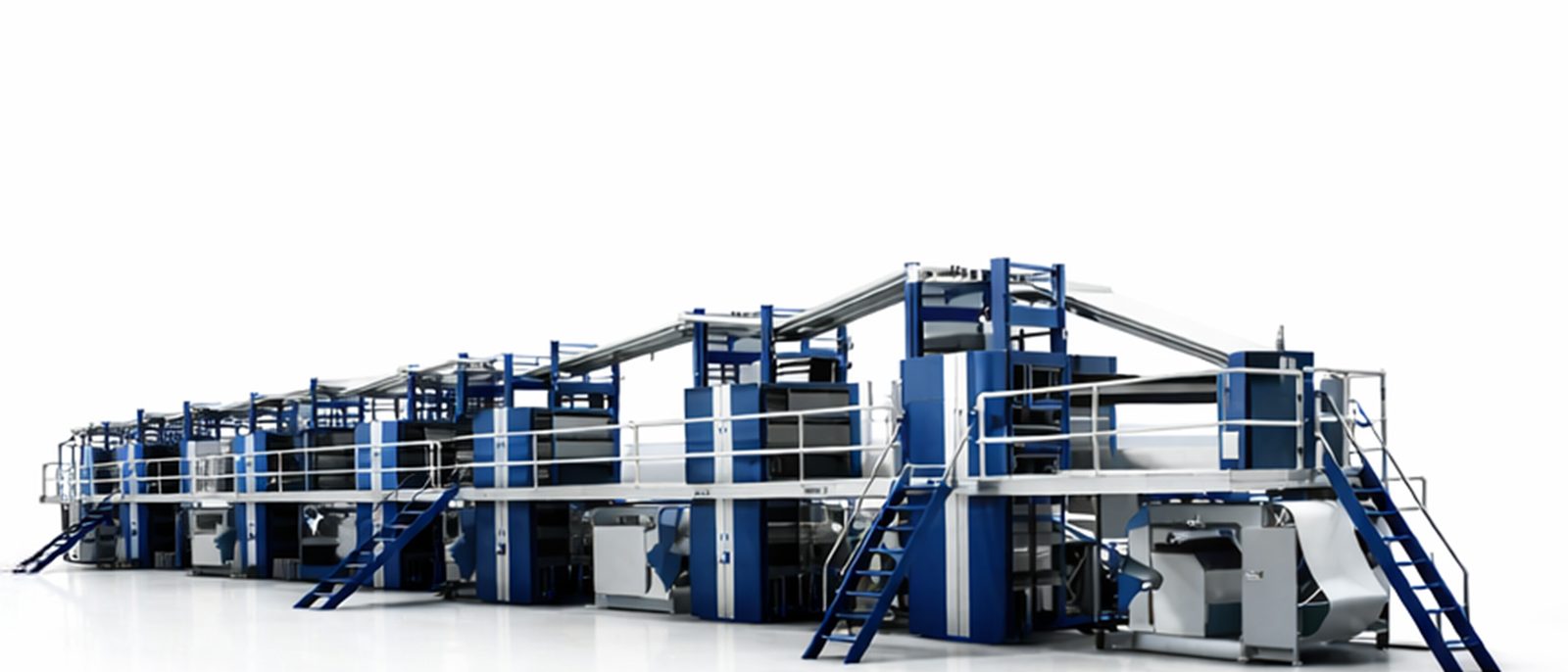

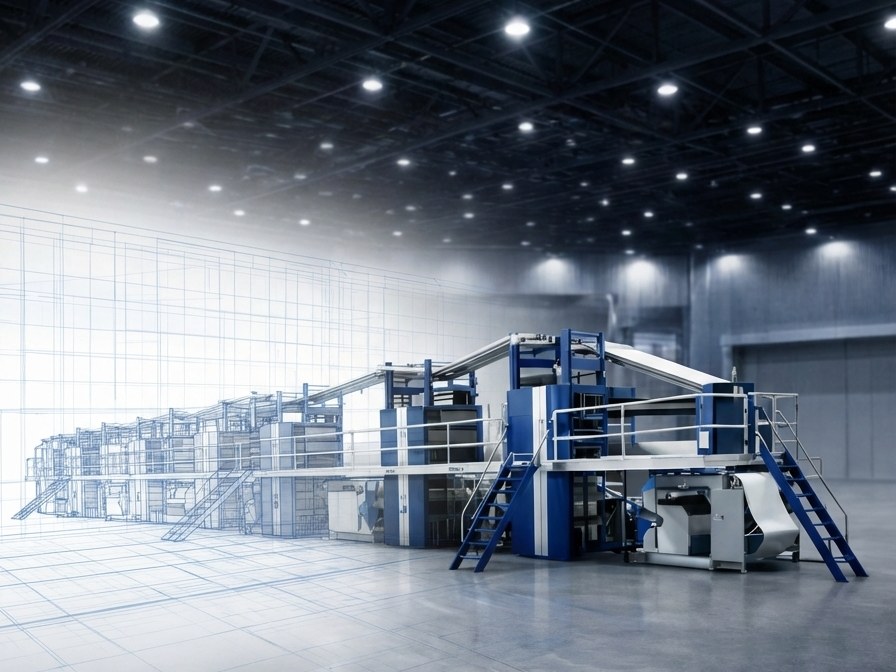

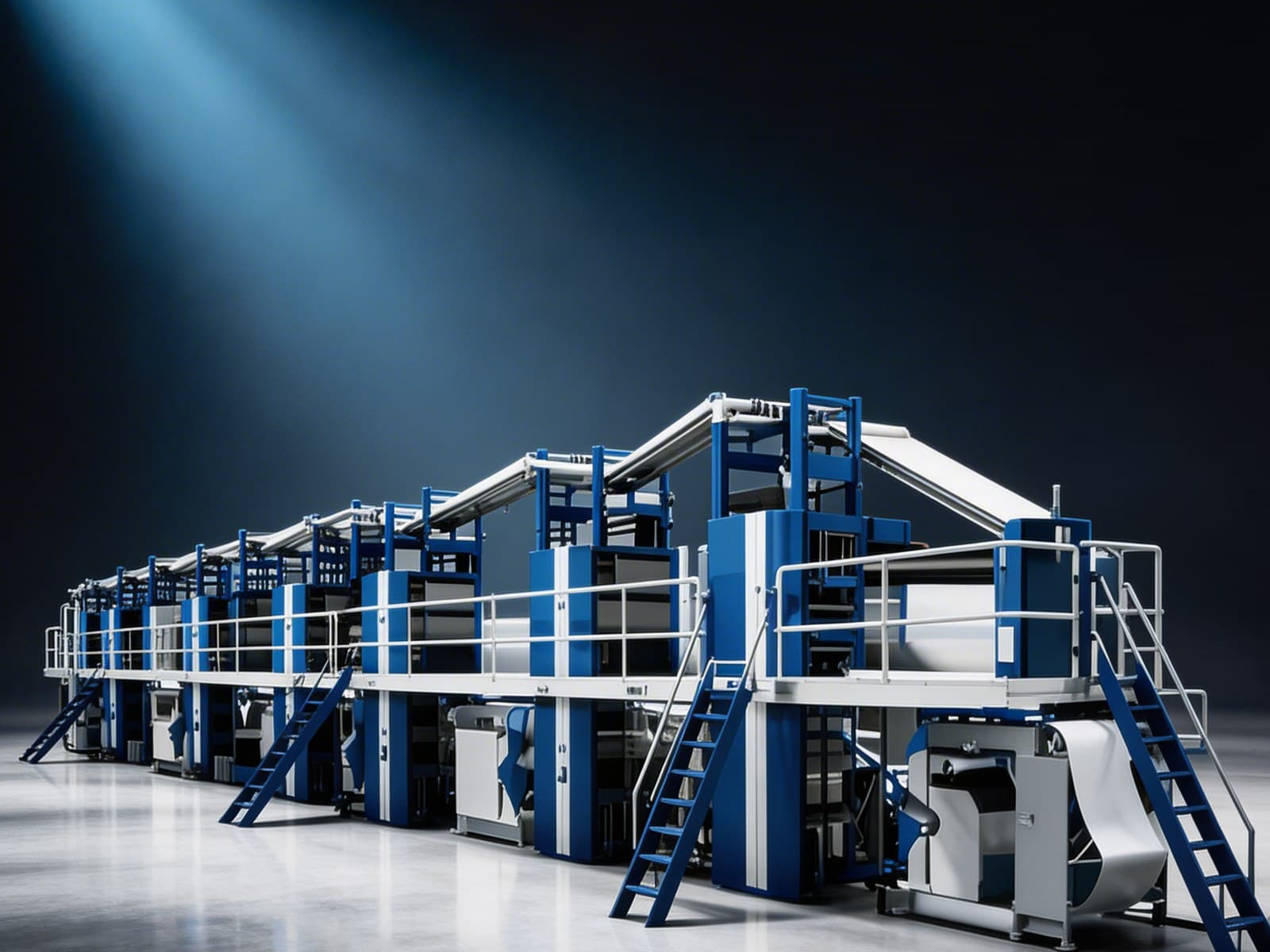

Orient X-Press
Web Offset Printing — Flagship
Orient's flagship web-offset press at 50,000 copies per hour. Dynamically-balanced solid stainless steel cylinders preloaded in nickel double-row taper roller bearings, Siemens PLC with colour touchscreen console, and ink/water balance controlled through the screen.
Maximum SpeedUp to 50,000 cph
Configurations
Mono Unit3-Colour Satellite4 High Tower
Key Features

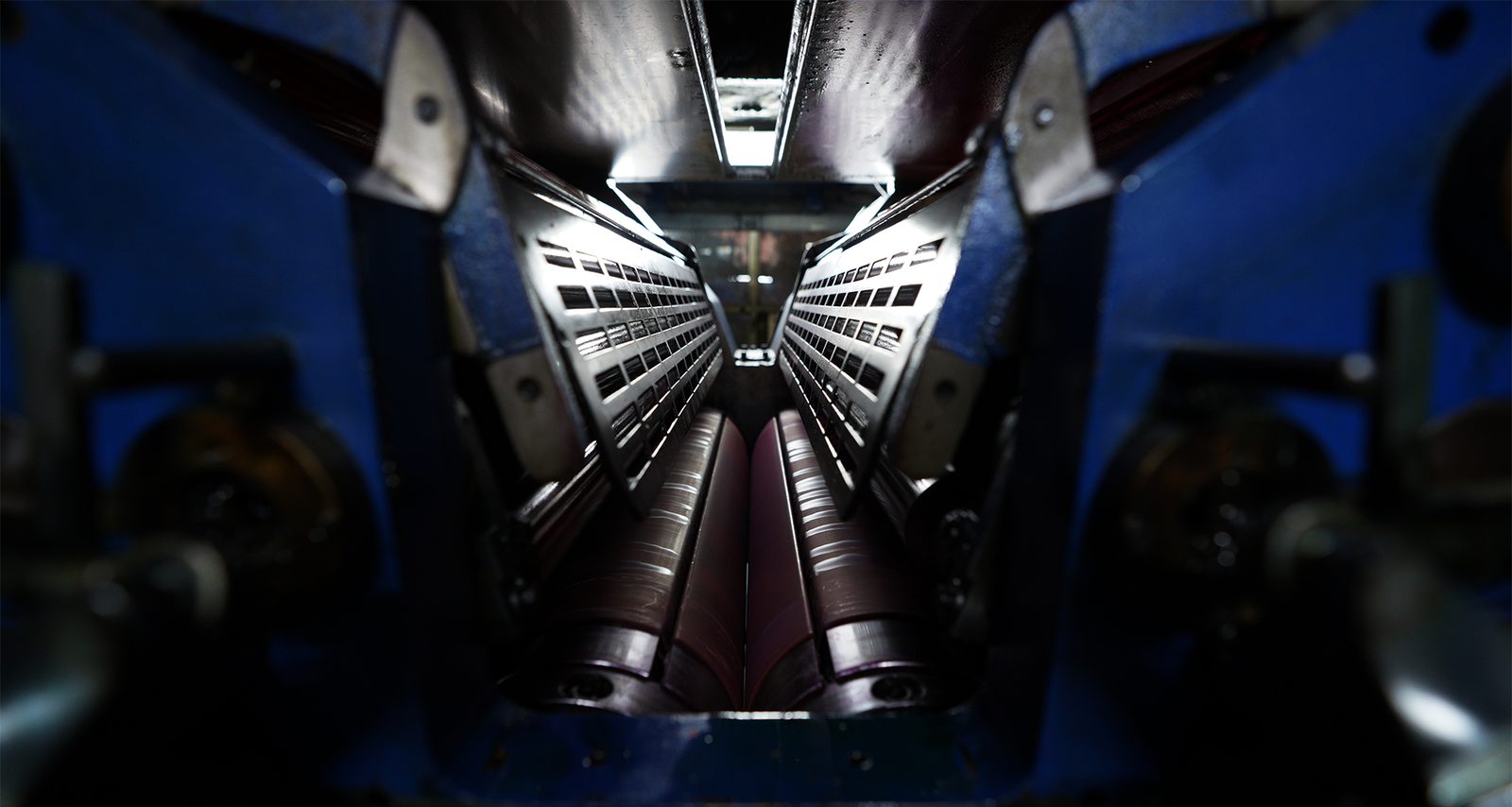

- →Solid stainless steel plate and blanket cylinders, preloaded in nickel double-row taper roller bearings
- →Hardened and ground bushes in frames for cylinder sleeves
- →Motorized ink fountain rollers with swing-down lever fountain
- →Slit-type plate lock-up with quick-positioning pins; half-plate possible
- →Narrow gap blanket lock-up
- →Motorized side and circumferential register for both plate cylinders
- →Variable-speed motorized brushmist dampening
- →Pneumatic on/off for main impression, ink feed, ink form and damper
- →Siemens PLC + colour touchscreen console; ink/water balance, registration and pagination from one screen
- →Centralized water circulation with chiller, reverse inching
Specifications
Speed50,000 cph
Paper Width700 – 915 mm
Max Reel Diameter1,070 mm (42")
Plate Width915 mm
Plate Thickness0.28 / 0.30 mm
Blanket Thickness (w/ packing)2.1 mm
Paper Grammage (Uncoated)38 – 100 gsm
Available Cut-offs533 · 546 · 578 mm
ConsoleSiemens Colour Touchscreen
Performance of the machine may vary depending on a number of factors including substrate type, application, operator skill etc.
