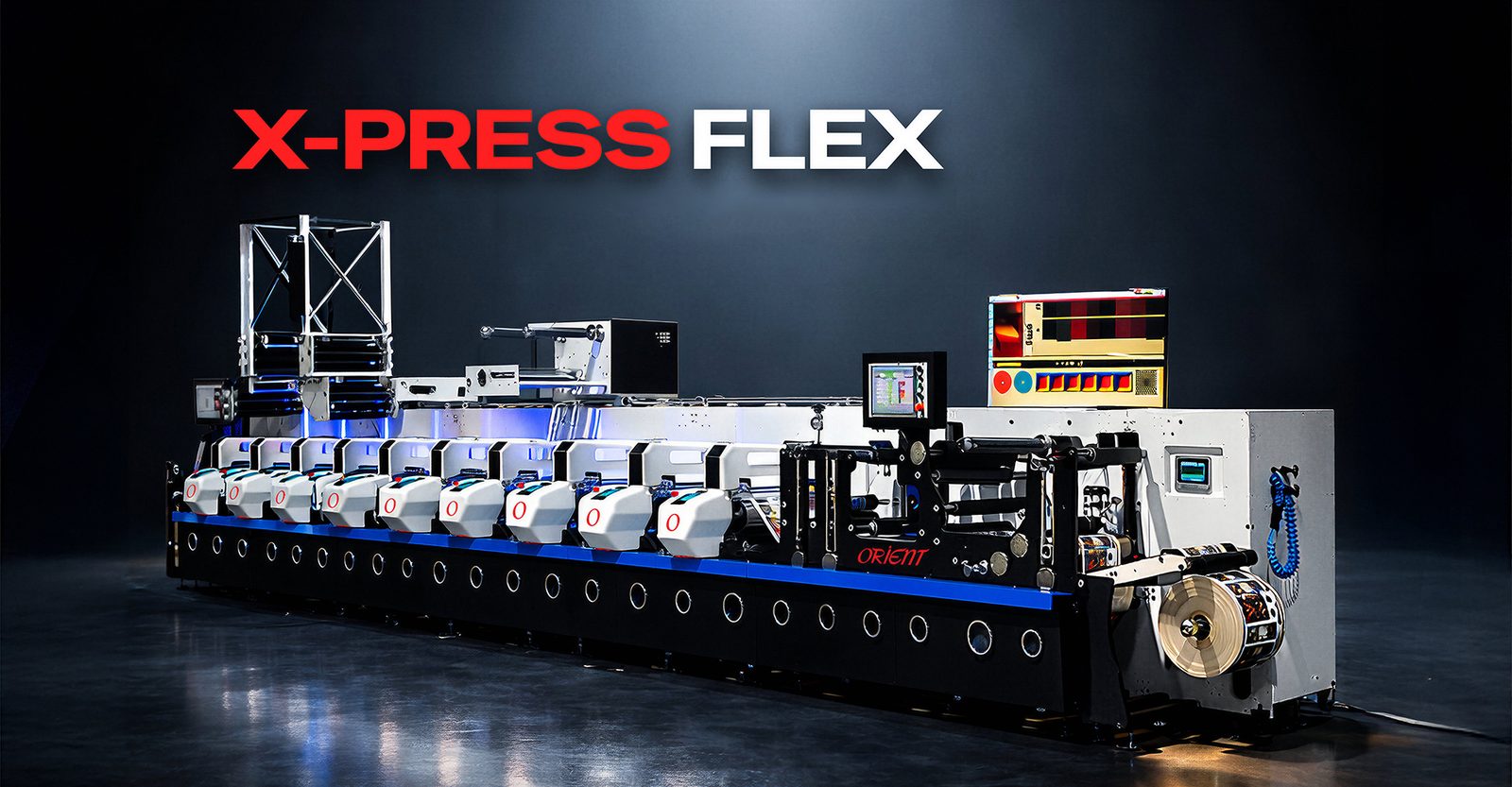

X-Press Flex Wide Web
Flexographic Printing
Wide web flexo press running up to 200 m/min on web widths of 1,000 – 1,320 mm. Sleeve technology for quick changeover with up to 50% less wastage, ink curing across UV LED / IR / hot air, and sustainable green ink compatibility for FMCG, food, medical, and pharma packaging.
Maximum SpeedUp to 200 m/minHigher speeds configurable depending on specification and application — please ask your sales rep.
Key Features
- →Max web width 1,000 – 1,320 mm · max printing width 1,270 mm
- →Sleeve technology for quick changeover — up to 50% less wastage
- →Max mechanical speed up to 200 m/min
- →Full servo drive · auto registration · pre-registration and second-pass supported
- →Ink curing: UV LED · IR · Hot Air (configurable to application)
- →Ink compatibility: UV LED, water-based, solvent — sustainable green inks supported
- →Chill water circulation at 20 – 22°C
- →Hybrid-ready with Orient Jet for inline digital + flexo production
- →FMCG, food, medical, pharma sectors
Specifications
Max Web Width1,000 – 1,320 mm
Max Printing Width1,270 mm
Printing Repeat350 – 850 mm
Max Unwinding Diameter1,050 mm
Max Rewinding Diameter1,050 mm
Driving ModeFull Servo
Max Mechanical SpeedUp to 200 m/min (higher speeds configurable depending on specification and application — please ask your sales rep)
Ink CuringIR · Hot Air · UV / LED (application-dependent)
Applicable InkUV LED · Water-based · Solvent
SubstratePaper, film, board (wide gamut — contact sales for specific application)
Substrate Thickness12 – 350 µm
RegistrationAuto
Pre-RegistrationAvailable
Second PassAvailable
Chill Water20 – 22 °C
Wastage ReductionUp to 50%
Typical SectorsFMCG, Food, Medical, Pharma
Performance of the machine may vary depending on a number of factors including substrate type, application, operator skill etc.
