Orient XLC
Web Offset Printing — Compact
Compact alternative to traditional web-offset at 578 mm cutoff. Single-width, single-circumference press designed for space-efficient 32,000 cph production, with a tower under 3.1 metres tall and web-wrap contact between blankets to prevent fluttering.
Maximum SpeedUp to 32,000 cph
Key Features

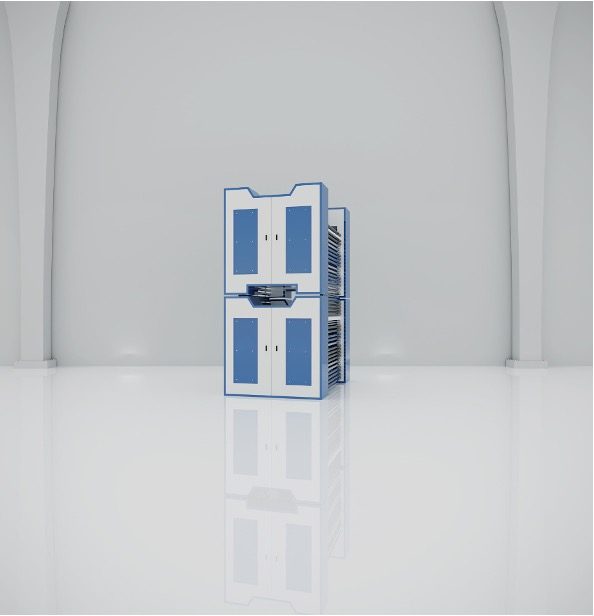

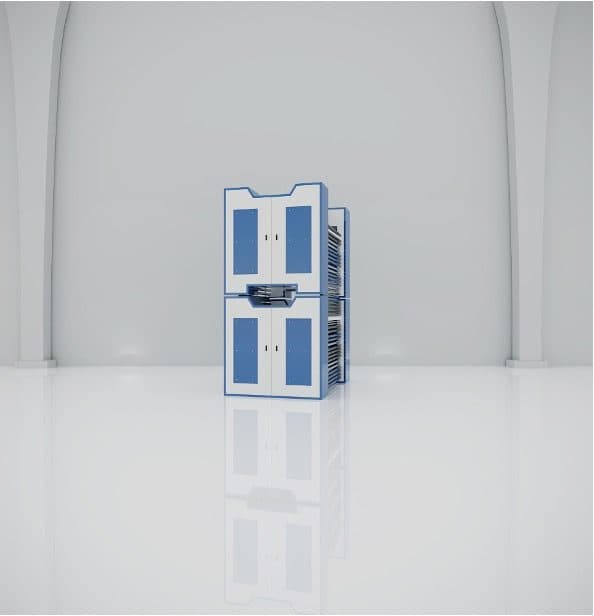

- →Compact 4-Hi tower: 3,065 mm height, 1,390 mm width
- →Web-wrap contact between blankets to prevent fluttering
- →Variable-speed motorized contactless brushmist dampening
- →Motorized ink fountain roller
- →One extra rider roller per side for enhanced ink distribution
- →Slit-type plate lock-up, narrow gap blanket cylinders
- →Hardened and ground cylinder bores for long-lasting precision fit
Specifications
Speed32,000 cph
Cut-off578 mm
Paper Width660 – 889 mm
Max Reel Diameter1,070 mm
Plate Width889 mm
Plate Length (Slit)609 mm
Plate Thickness0.28 mm
Blanket Width889 mm
Blanket Length (Narrow Gap)651 mm
Blanket Thickness (w/ packing)2.1 mm
Printing Length (Narrow Gap)563 mm
Paper Grammage (Uncoated)38 – 100 gsm
Tower Height3,065 mm
Tower Width1,390 mm
Performance of the machine may vary depending on a number of factors including substrate type, application, operator skill etc.
