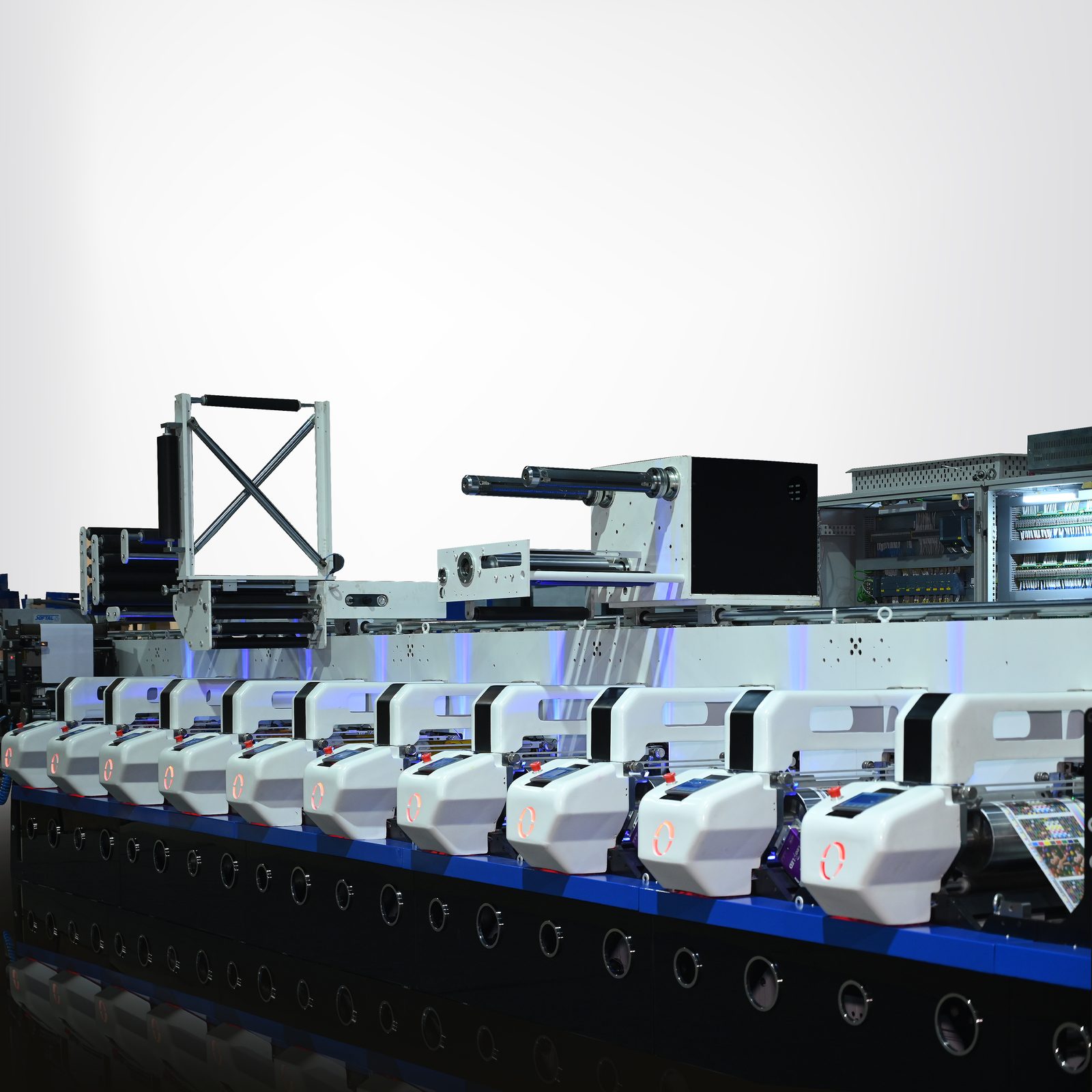

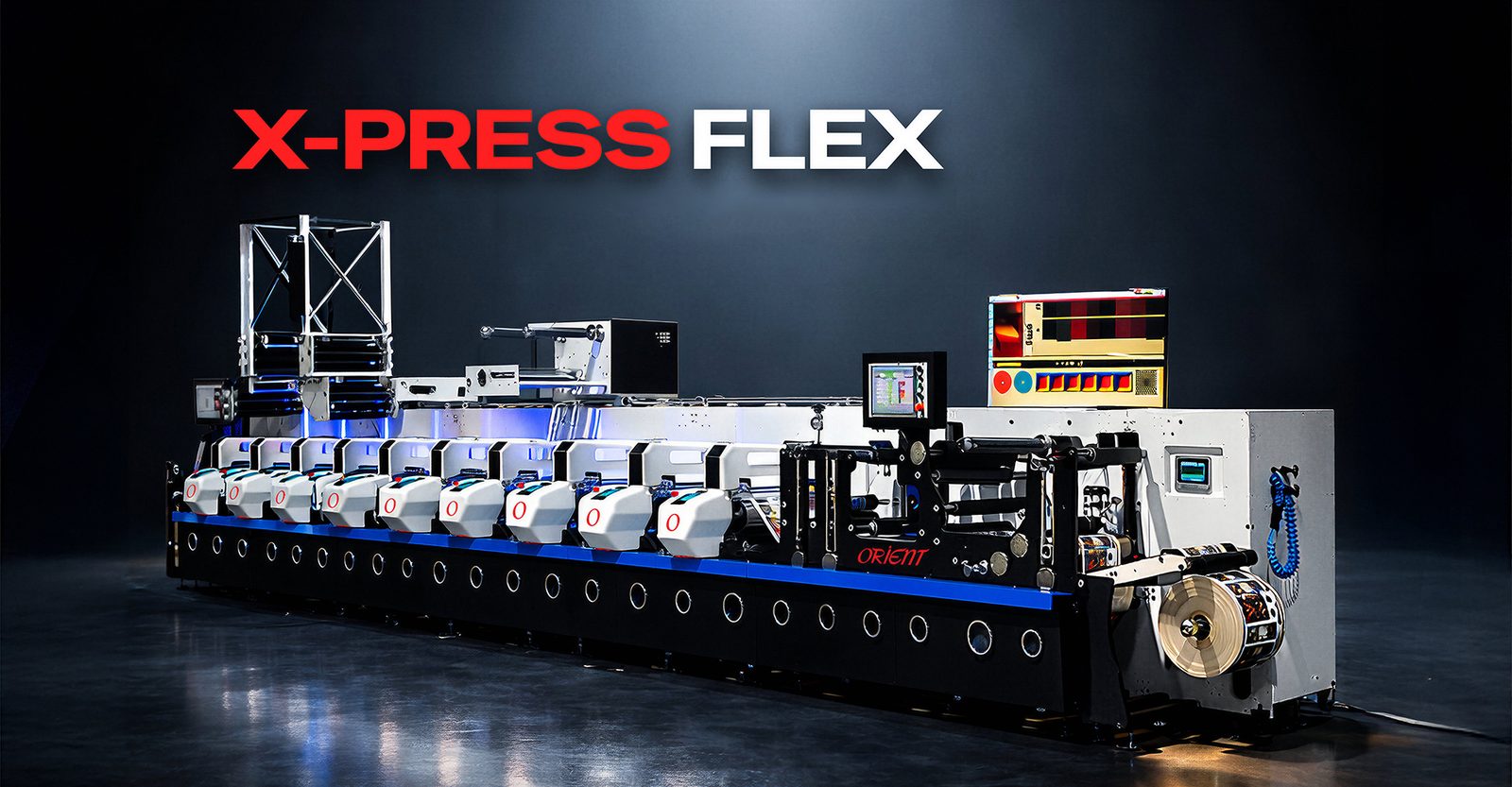

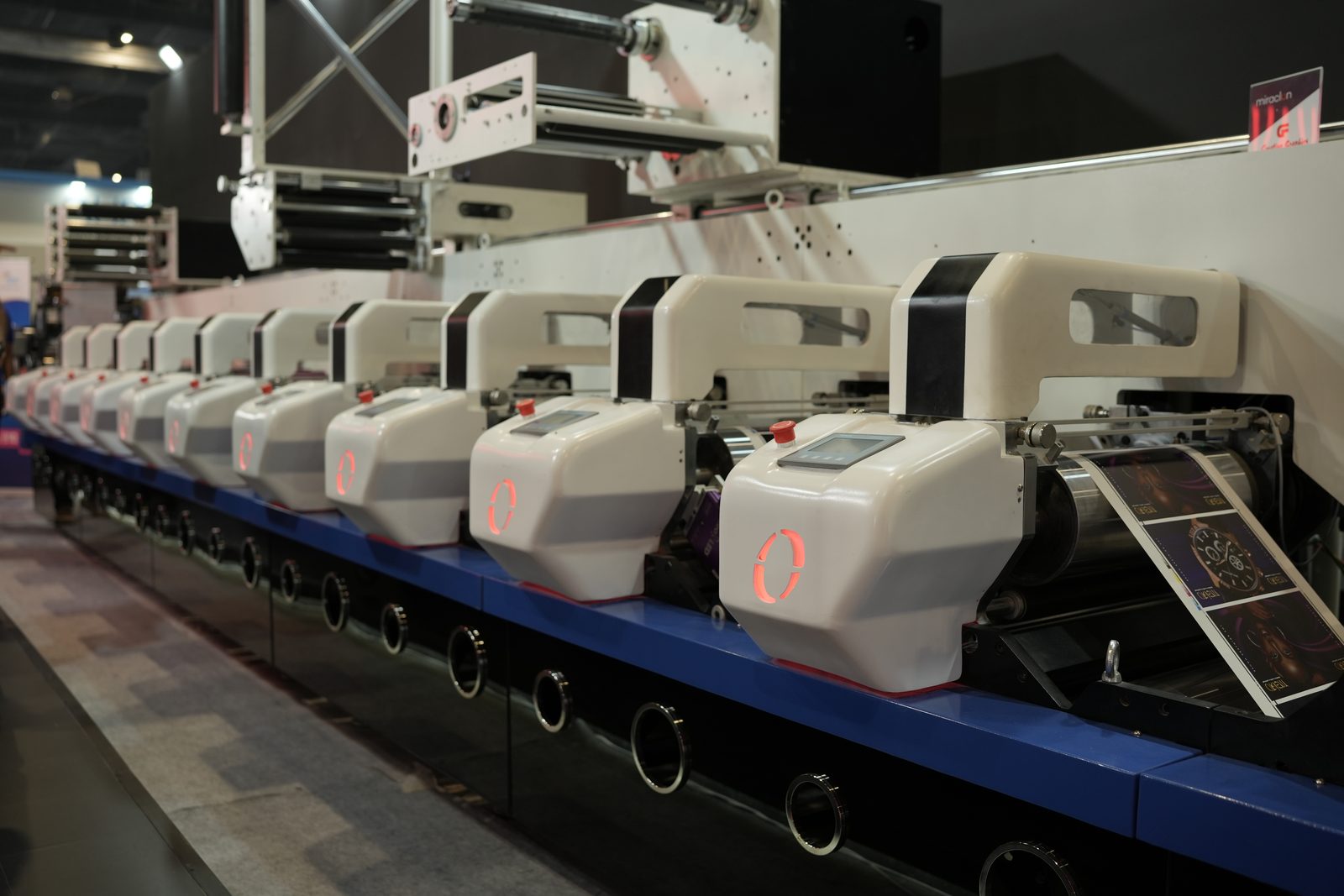

X-Press Flex Narrow & Mid Web
Flexographic Printing
Narrow and mid web flexo presses for labels, flexible packaging, shrink sleeves, pouches, and mono cartons. Proprietary Orient X-Gear design with custom cylinder assembly for registration, UV LED / hot-air / IR curing, and ink compatibility across UV LED, water-based, and solvent systems.
Maximum SpeedUp to 180 m/minHigher speeds configurable depending on specification and application — please ask your sales rep.
Key Features
- →Proprietary Orient X-Gear design
- →Custom cylinder assembly for precise registration
- →Optional sleeve technology (narrow web)

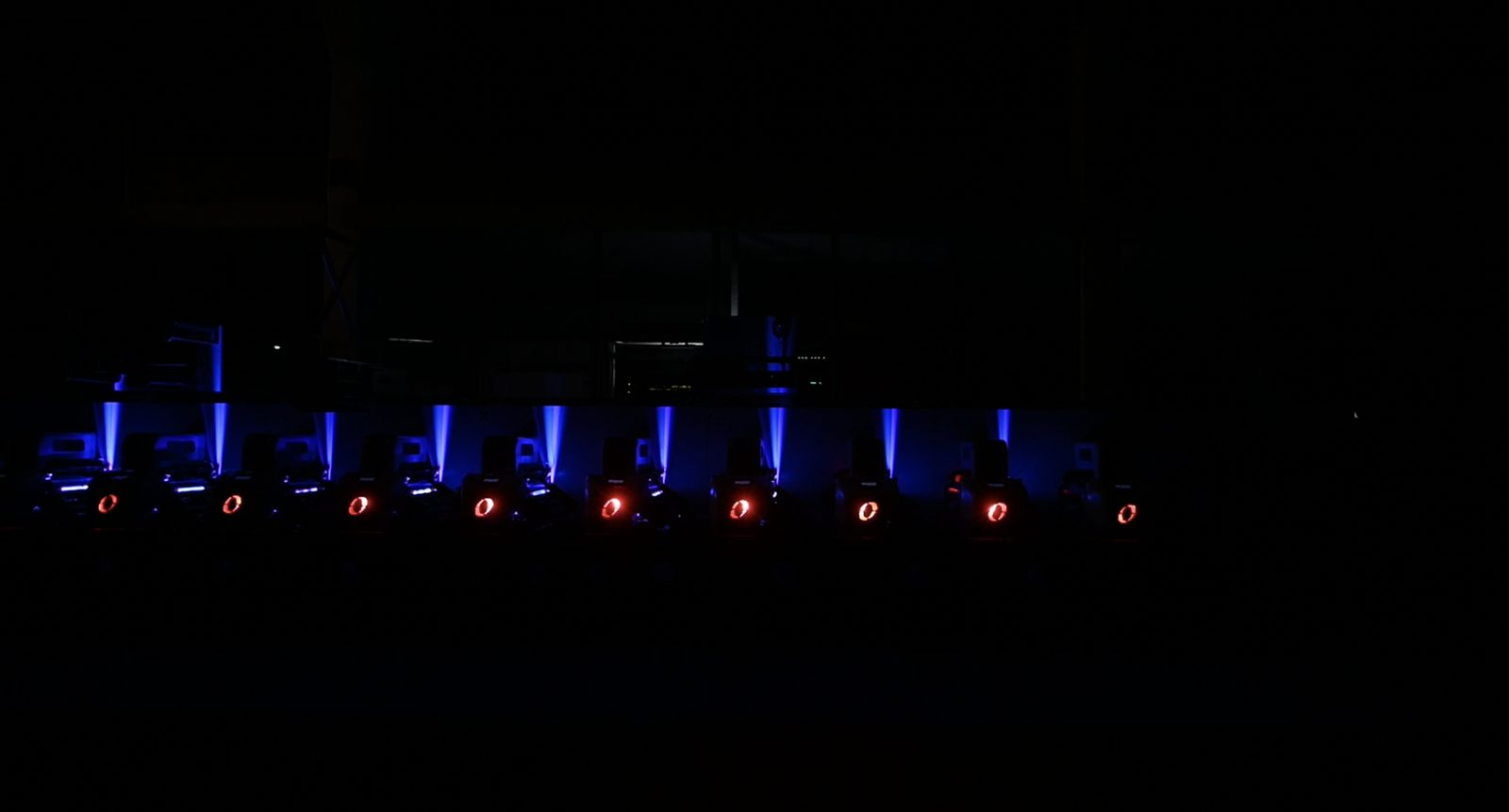

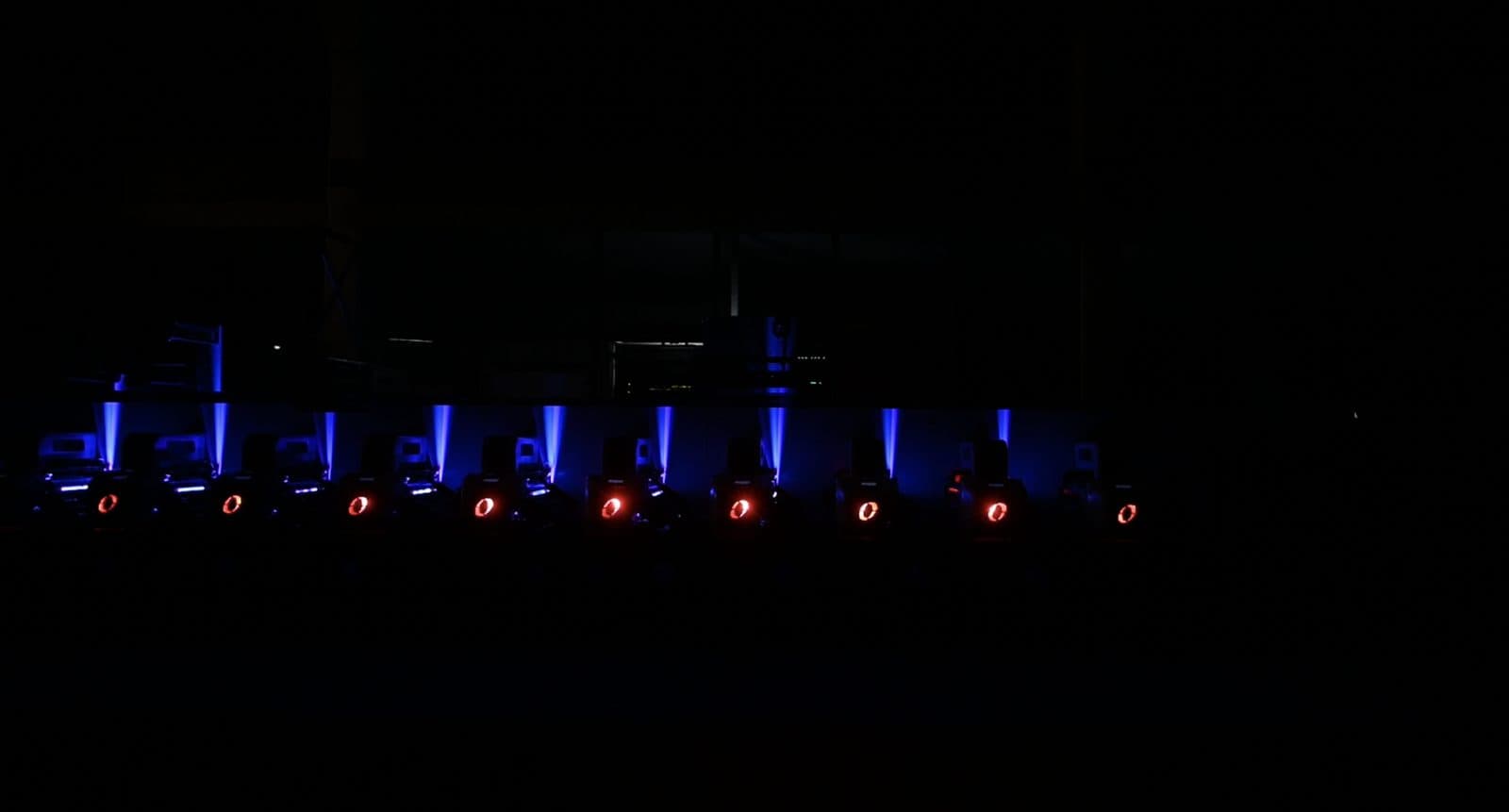

- →UV LED · Hot Air · IR curing
- →Ink compatibility: UV LED, water-based, solvent
- →Labels, film labels, shrink sleeves, pouches, flexible packaging, mono cartons
- →Hybrid-ready with Orient Jet for inline digital + flexo production
Specifications
Narrow Web
Mid Web
Max Web Widths
350 / 450 / 550 mm
650 / 750 / 850 mm
Max Printing Widths
340 mm @ 350 · 440 mm @ 450 · 540 mm @ 550
640 mm @ 650 · 740 mm @ 750 · 840 mm @ 850
Printing Repeat
177.8 – 609.6 mm
177.8 – 609.6 mm @ 650 · 350 – 850 mm @ 750 / 850
Die-Cutting Repeat
304.8 – 609.6 mm
—
Max Unwinding Diameter
1,050 mm
1,050 mm

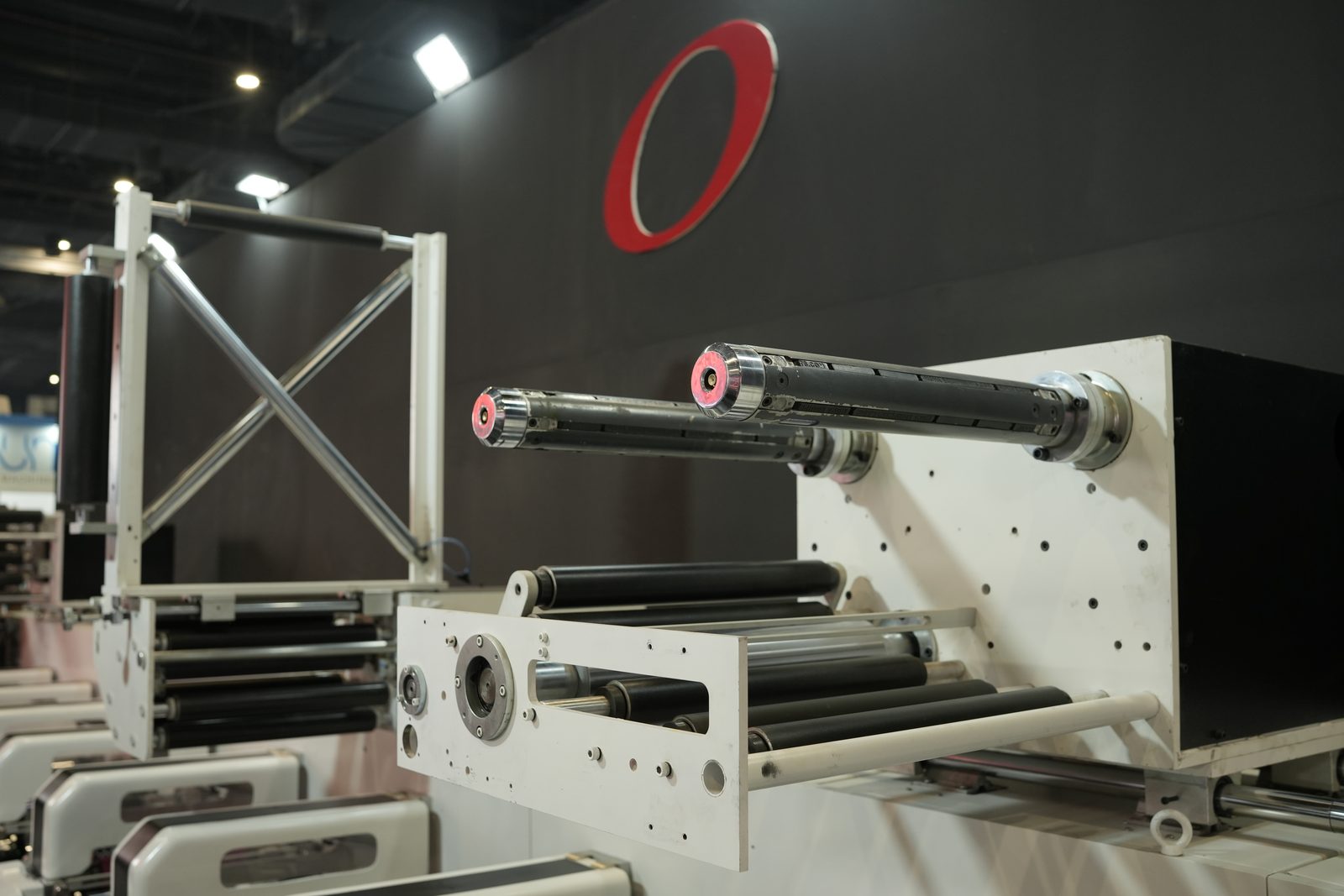

Max Rewinding Diameter
1,050 mm
1,050 mm
Max Matrix Diameter
700 mm
—
Driving Mode
Full Servo
Full Servo
Max Mechanical Speed
180 m/min (higher speeds configurable depending on specification and application — please ask your sales rep)
180 m/min (higher speeds configurable depending on specification and application — please ask your sales rep)
Ink Curing
UV LED · Hot Air · IR
UV LED · Hot Air · IR
Applicable Ink
UV LED · Water-based · Solvent
UV LED · Water-based · Solvent
Substrate Thickness
12 – 350 µm
12 – 350 µm
Attachments
Delam Relam · Cold Foil · Peel & Seal · Turn Bar
Delam Relam · Cold Foil · Peel & Seal · Turn Bar
Registration
Auto
Auto
Pre-Registration
Available
Available
Second Pass
Available
Available
Typical Applications
Self-adhesive labels, paper & coated stocks, vinyl, BOPP, PET, PE, PP, mono cartons, shrink, clear films, filmic, metallized & specialty
Film labels, shrink sleeves, film pouches, flexible packaging, mono cartons, paper & coated stocks
Performance of the machine may vary depending on a number of factors including substrate type, application, operator skill etc.
