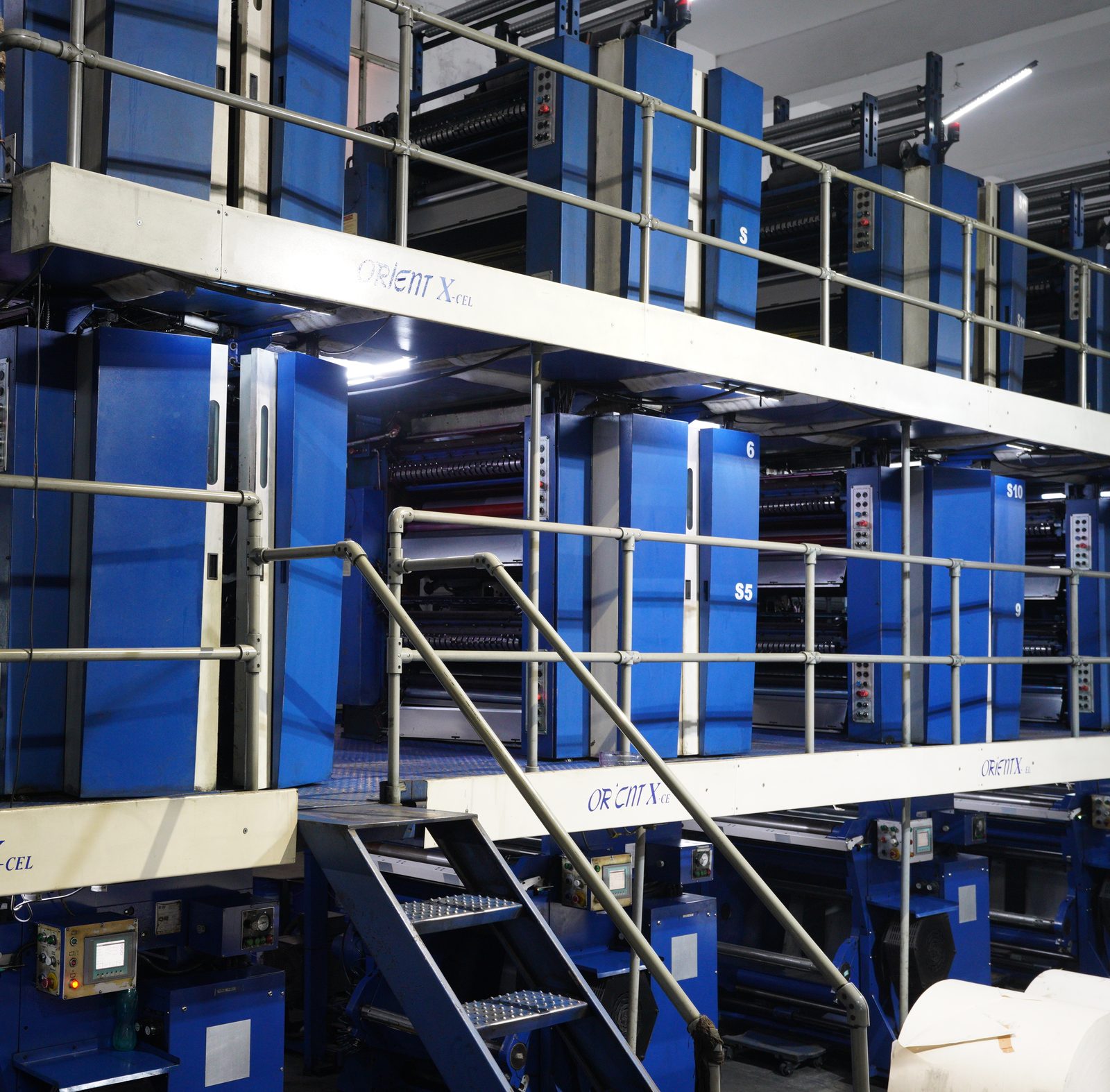

Orient X-Cel
Web Offset Printing
Single-width, single-circumference web-offset press running up to 36,000 copies per hour — 20% faster than the Orient Super. Hardened and ground bushes, motorized circumferential register, and brushmist dampening for demanding commercial and newspaper production.
Maximum SpeedUp to 36,000 cph
Configurations
Mono Unit3-Colour Satellite4 High Tower
Key Features
- →Hardened and ground bushes in frame for plate and blanket cylinders

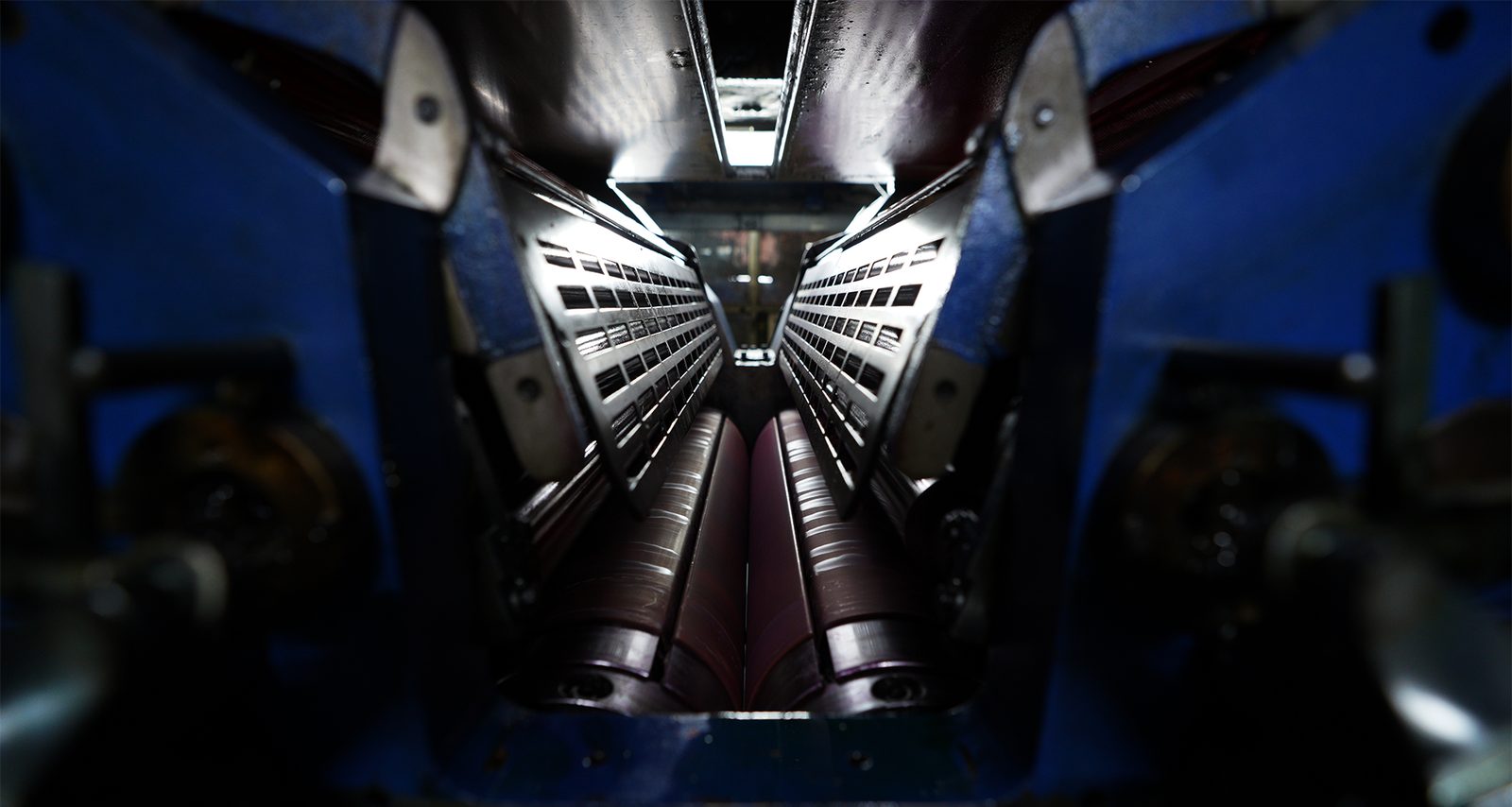

- →Dynamically-balanced hard chromium plated cylinders
- →Motorized circumferential register on loading side, on the run
- →Motorized side register for both plate cylinders
- →PU-covered ink vibrator rollers with narrow gap blanket lock-up
- →Infra-red web-break detector
- →Variable-speed motorized brushmist dampening
- →Optional: heavy-duty compensator, pillar clutch on either side, auto grease lubrication, centralized water with chiller, solid stainless-steel cylinders, T-Bar blanket lock-up, AC drive
Specifications
Speed36,000 cph
Paper Width660 – 889 mm
Max Reel Diameter1,070 mm (42")
Plate Width890 mm
Plate Thickness0.28 / 0.30 mm
Blanket Thickness (w/ packing)2.1 mm
Paper Grammage (Uncoated)38 – 100 gsm
Available Cut-offs508 · 533 · 546 · 560 · 578 · 630 mm
Performance of the machine may vary depending on a number of factors including substrate type, application, operator skill etc.
